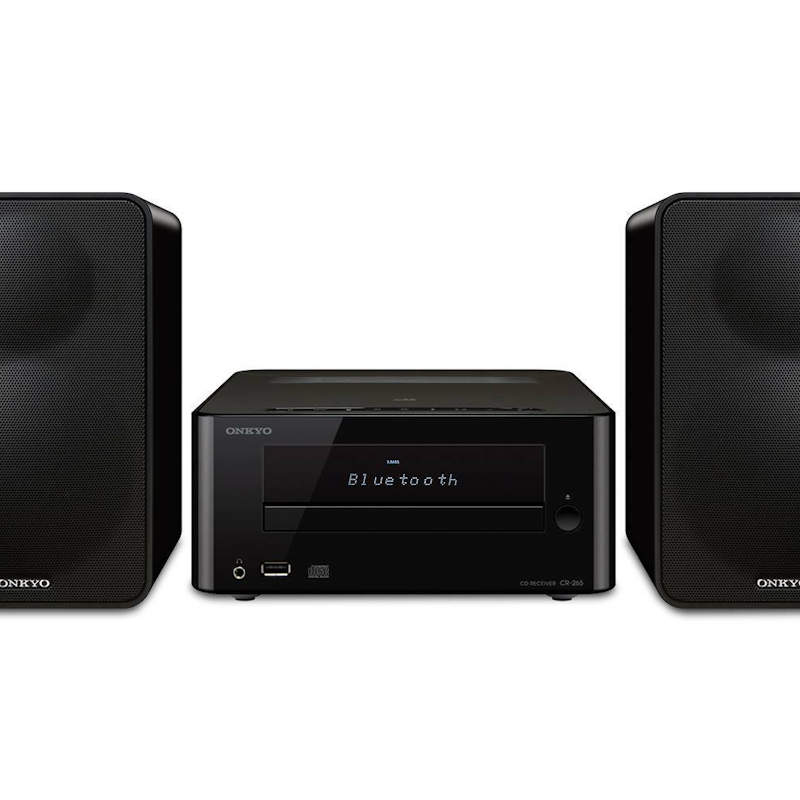

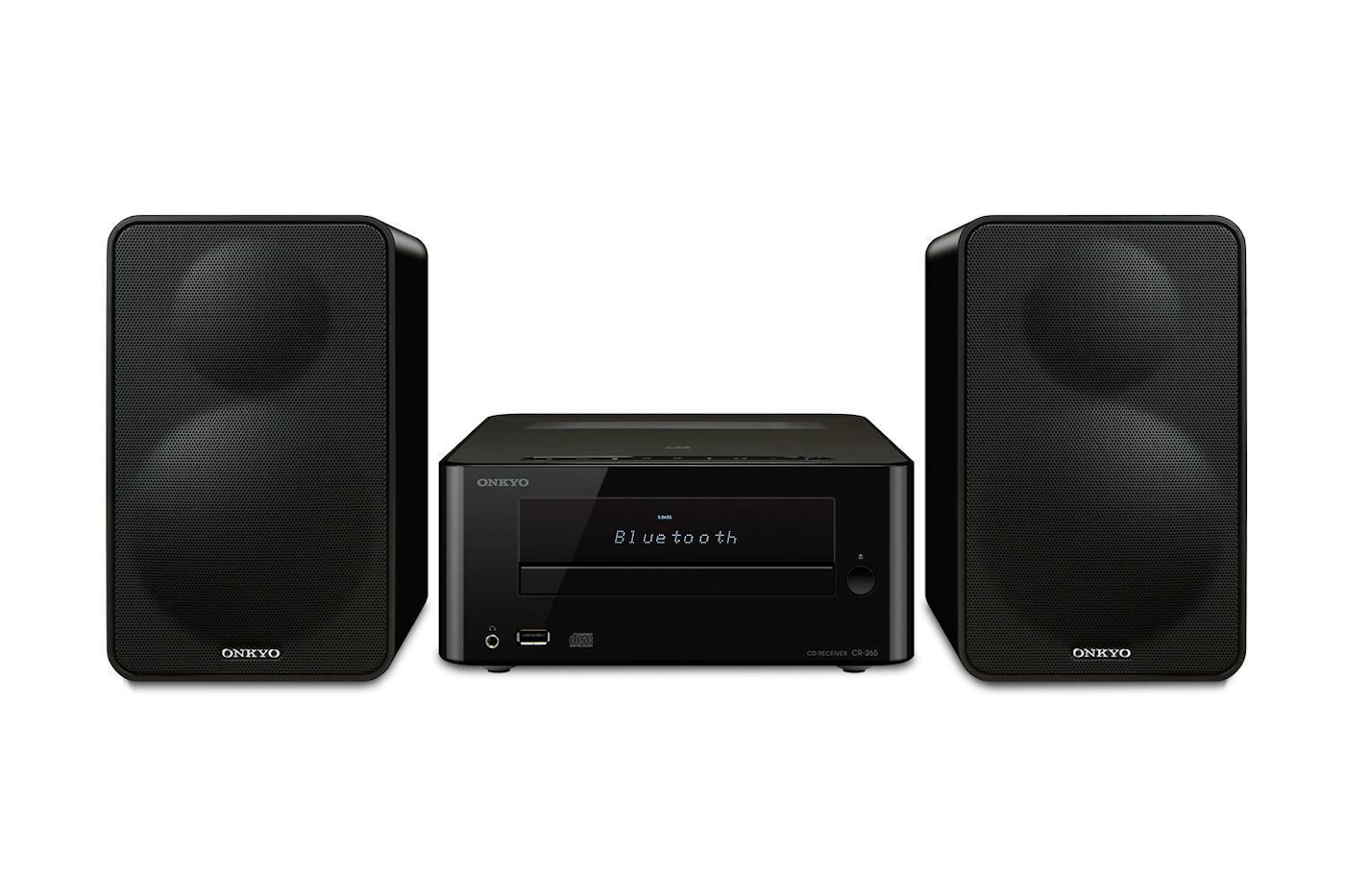

CS-265(B)

With Bluetooth technology and more amp power than ever, the CS-265 brings big and brilliant sound to small spaces. A quality front-loading CD player handles regular audio CD and both MP3- and WAV-encoded discs, while iOS mobile users ar e treated to an ultra-clear USB connection.

Features

Receiver Section

Power Output Stereo (6 ohm, 1 kHz, 2 ch driven) 20 W/Ch
Digital Amplifier Circuitry
Bluetooth ✓ (Ver 4.0 for Mobiles, Tablets, and PCs)
Audio Input/Output Terminals 1/0
Subwoofer Pre Out -
Super Bass Control ✓ (2-mode)
Active Bass Control
Number of Presets 30
Automatic/Manual Tuning
Sleep Timer
Headphone Jack
RI-Compatible Remote Control -
Made for iPod/iPhone

CD Player Section

Capacity Single Disc
Number of Repeat Modes 3
Number of Play Modes 3 (Normal/Memory/Repeat)
Analog Output (Fixed) -

Speaker Section

Type 2-Way, Bass Reflex
Magnetically Shielded
Nominal Impedance 6 ohms
Max. Power 40 W
Frequency Response 80 Hz-20 kHz
Drivers -
Woofer 3 15/16" (10 cm) Cone
Tweeter 3/4" (2.0 cm) Balanced-Dome

Specs

RECEIVER SECTION

Power Output 20 W + 20 W (6 Ohms, 1 kHz, 10 % THD, 2 ch driven, FTC)
Total Harmonic Distortion 1% (1 kHz, 1W)
Damping Factor 60 (Front, 1 kHz, 8 ohms)
Input Sensitivity and Impedance Tape 1000 mV/47 k-ohms (Line)
Frequency Response 30 Hz–20 kHz
Tone Control ±7 dB, 100 Hz (Bass) ±7 dB, 10 kHz (Treble)
Signal-to-Noise Ratio 77 dB (Line, IHF-A)
Speaker Impedance 6 ohms–16 ohms
Tuning Frequency Range 530 kHz–1,710 kHz
Total Harmonic Distortion + Noise 0.1%
Power Supply AC 120 V, 60 Hz
Power Consumption 32W
Standby Power Consumption 0.5 W (iPod/iPhone/iPad not connected)
Dimensions (W x H x D) 8 7/16" x 3 7/8" x 10 3/4" (215 x 99 x 273 mm)
Weight 4.2 lbs. (1.9 kg)

SPEAKER SECTION

Speaker Type 2-Way, Bass-Reflex
Woofer 3 15/16" (10 cm) Cone
Tweeter 3/4" (2.0 cm) Balanced-Dome
Frequency Response 55 Hz–50 kHz
Crossover Frequency 4.5 kHz
Output Sound Pressure Level 82 dB/W/m
Max. Input Power 30 W
Nominal Impedance 6 ohms

GENERAL

Dimensions (W x H x D) 5 1/8" x 8 1/4" x 6 15/16" (130 x 210 x 176 mm)
Weight 3.7 lbs. (1.7 kg)

Docs

Product Manual

Download the Product Manual for CS-265(B) here: CS-265(B) Owner's Manual .
