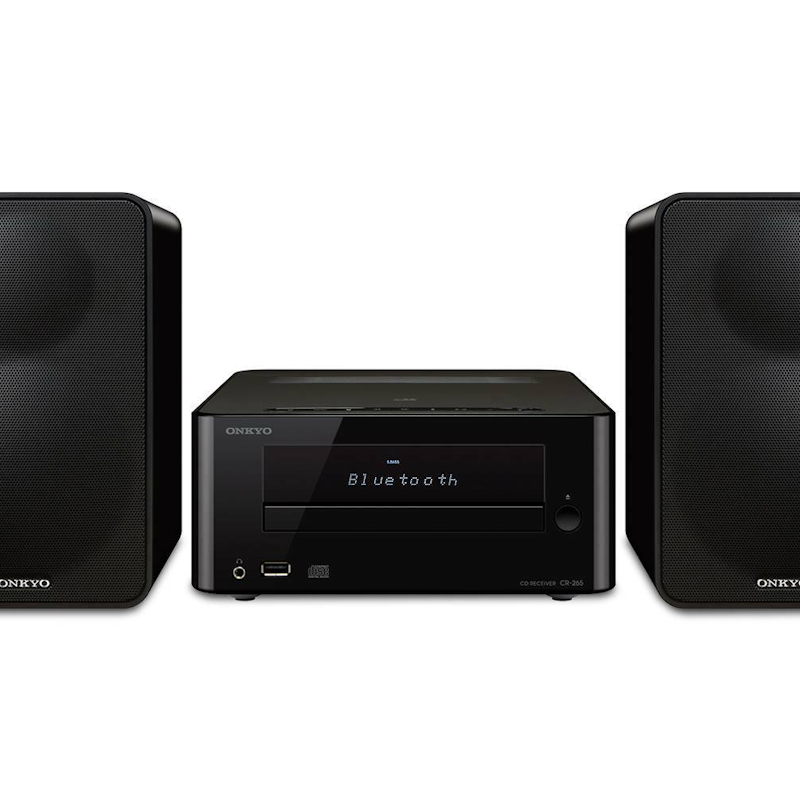

CS-265 (Refurbished)
With Bluetooth technology and more amp power than ever, the CS-265 brings big and brilliant sound to small spaces. A quality front-loading CD player handles regular audio CD and both MP3- and WAV-encoded discs, while iOS mobile users ar e treated to an ultra-clear USB connection.
Features
Receiver Section
| Power Output Stereo (6 ohm, 1 kHz, 2 ch driven) | 20 W/Ch |
| Digital Amplifier Circuitry | ✓ |
| Bluetooth | ✓ (Ver 4.0 for Mobiles, Tablets, and PCs) |
| Audio Input/Output Terminals | 1/0 |
| Subwoofer Pre Out | - |
| Super Bass Control | ✓ (2-mode) |
| Active Bass Control | ✓ |
| Number of Presets | 30 |
| Automatic/Manual Tuning | ✓ |
| Sleep Timer | ✓ |
| Headphone Jack | ✓ |
| RI-Compatible Remote Control | - |
| Made for iPod/iPhone | ✓ |
CD Player Section
| Capacity | Single Disc |
| Number of Repeat Modes | 3 |
| Number of Play Modes | 3 (Normal/Memory/Repeat) |
| Analog Output (Fixed) | - |
Speaker Section
| Type | 2-Way, Bass Reflex |
| Magnetically Shielded | ✓ |
| Nominal Impedance | 6 ohms |
| Max. Power | 40 W |
| Frequency Response | 80 Hz-20 kHz |
| Drivers | - |
| Woofer | 3 15/16" (10 cm) Cone |
| Tweeter | 3/4" (2.0 cm) Balanced-Dome |
Specs
RECEIVER SECTION
| Power Output | 20 W + 20 W (6 Ohms, 1 kHz, 10 % THD, 2 ch driven, FTC) |
| Total Harmonic Distortion | 1% (1 kHz, 1W) |
| Damping Factor | 60 (Front, 1 kHz, 8 ohms) |
| Input Sensitivity and Impedance Tape | 1000 mV/47 k-ohms (Line) |
| Frequency Response | 30 Hz20 kHz |
| Tone Control | ±7 dB, 100 Hz (Bass) ±7 dB, 10 kHz (Treble) |
| Signal-to-Noise Ratio | 77 dB (Line, IHF-A) |
| Speaker Impedance | 6 ohms16 ohms |
| Tuning Frequency Range | 530 kHz1,710 kHz |
| Total Harmonic Distortion + Noise | 0.1% |
| Power Supply | AC 120 V, 60 Hz |
| Power Consumption | 32W |
| Standby Power Consumption | 0.5 W (iPod/iPhone/iPad not connected) |
| Dimensions (W x H x D) | 8 7/16" x 3 7/8" x 10 3/4" (215 x 99 x 273 mm) |
| Weight | 4.2 lbs. (1.9 kg) |
SPEAKER SECTION
| Speaker Type | 2-Way, Bass-Reflex |
| Woofer | 3 15/16" (10 cm) Cone |
| Tweeter | 3/4" (2.0 cm) Balanced-Dome |
| Frequency Response | 55 Hz50 kHz |
| Crossover Frequency | 4.5 kHz |
| Output Sound Pressure Level | 82 dB/W/m |
| Max. Input Power | 30 W |
| Nominal Impedance | 6 ohms |
GENERAL
| Dimensions (W x H x D) | 5 1/8" x 8 1/4" x 6 15/16" (130 x 210 x 176 mm) |
| Weight | 3.7 lbs. (1.7 kg) |
Docs
Product Manual
Download the Product Manual for CS-265 (Refurbished) here:
CS-265 (Refurbished) Owner's Manual
.
