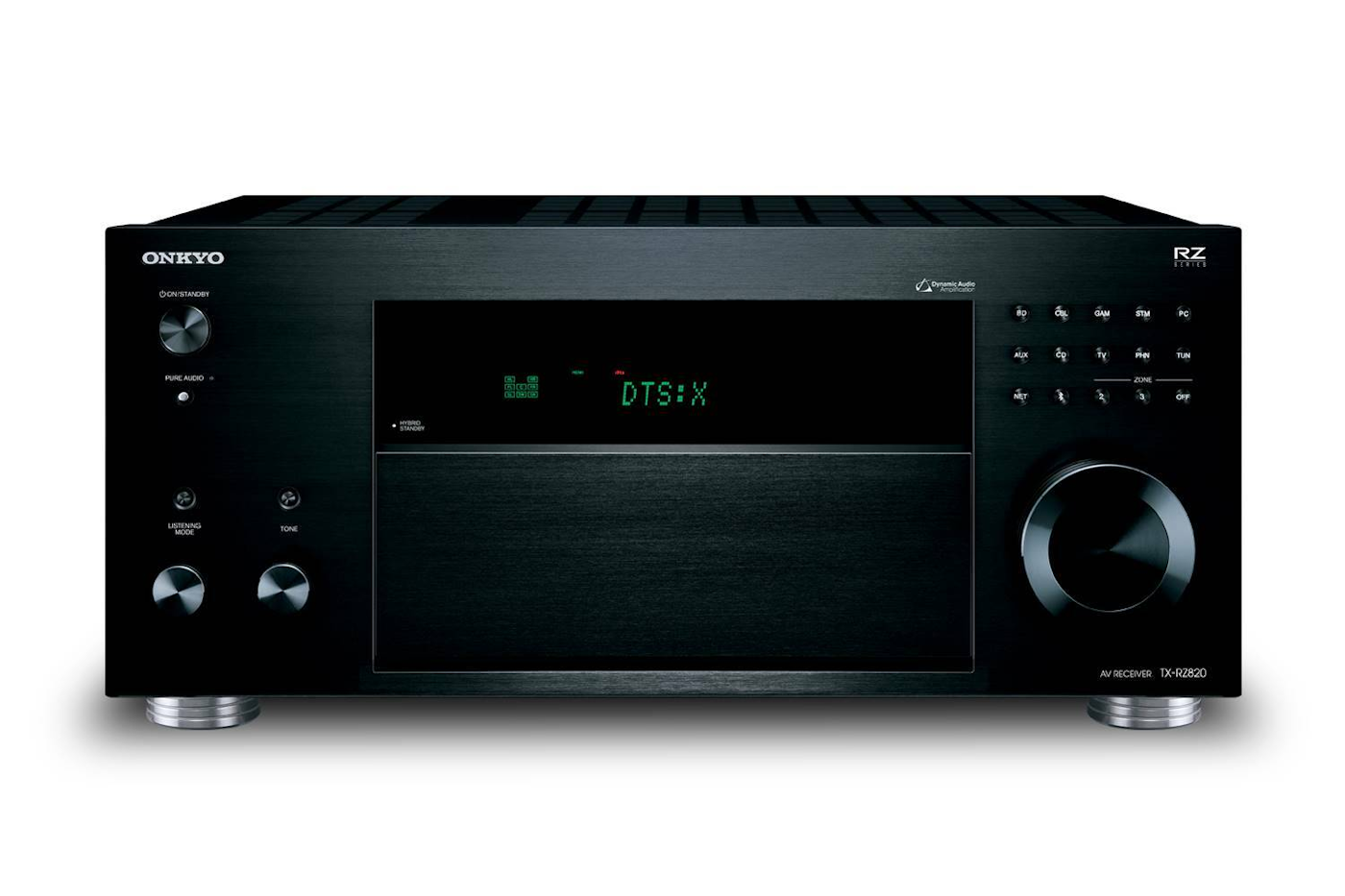

TX-RZ820

Features

# Channels	7.2
Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC)	130, 0.08% THD
Power Watts/Ch (6 Ohms 1kHz, 1 Channel Driven)	250, 10% THD
Dynamic Audio Amplification	✓ (for Clear and Realistic Sound)
H.C.P.S. (High Current Power Supply)	✓
Non-Phase Shift Amplifier	✓
THX Certified	✓
Continuous 6 Ohms Rated	✓
Certified 4 Ohms Performance	✓
Discrete Output Stage Circuitry	✓
Bi-amp Capability For Front	✓

Dolby Atmos	✓
32-Bit Digital Signal Processing Engine	✓
Dolby Decoder	Dolby Atmos, Dolby True HD, Dolby Surround
DTS:X	✓
DTS Decoder	DTS:X, DTS-HD Master Audio, DTS Neural:X
ONKYO GAME Surround Modes	✓ (Rock, Sports, Action, RPG)
VLSC for Noiseless Audio Processing	✓ (All Channels)
THX Processing Mode	✓
AccuEQ Room Calibration	✓ (w/ AccuReflex)
Phase-Matching Bass Boost	✓
Direct/Pure Mode	X/-
Advanced Music Optimizer	✓
384K/32 Bit DACs	✓

Analog Audio IN	6
Phono Input	✓
Digital Audio IN (OPT/COAX)	2 / 1
Composite Video I/O	2 / 0
Component Video I/O	2 / 0
Front Panel HDMI	✓
Front-Panel A/V	1
USB Input	✓ (Rear)
HDMI I/O	7 / 2 (Main/Zone 2/Sub)
HDMI 4K/60 Hz- Capable HDMI Terminals	✓
HDCP 2.2 Copy-Protection Compatibility	✓
HDMI Support for High Dynamic Range	✓
HDMI Support for 3D, Audio Return Channel and CEC	✓
Dolby Vision, HDR10, HLG, BT.2020 Support	✓
HDMI Support for Deep Color, x.v.Color, LipSync	✓
HDMI Support for DVD-Audio, SACD, Multichannel PCM	✓
Analog To HDMI Upconversion	✓
4K Passthrough	✓
Analog Pre-Outs	7.2
Powered Zone 2	✓ (and Zone 2 A/B)
Zone 2 Line Out	✓
Zone 2 Digital to Analog Audio Conversion	✓ (Net/SPDIF/HDMI)
Zone 3 Line Out	✓
Whole House Mode	✓
FlareConnect Multi-room Audio	✓
Airplay	✓
Google Chromecast built-in	✓
Supports Onkyo Controller App	✓
Internet Radio Capable	✓
Spotify Connect Support	✓
Tidal	✓
Streaming Audio From PC / Network	✓
Hi-Res Streaming Audio Formats	✓
Streaming Audio From USB memory	✓
Wireless Network	IEEE 802.11 a/b/g/n 5 Ghz / 2.4 Ghz
Bluetooth	✓ (Built-in)

RS-232	✓
IR Input	✓
Ethernet	✓
RIHD (Remote Interactive Over HDMI)	✓
12V Trigger	✓

Hybrid Standby Function	✓
Smart Grid-Ready	✓
Auto Speaker Calibration W/Mic.	AccuEQ w/AccuReflex
OSD Out	✓
Solid Aluminum Front	✓
Detachable AC Cord	✓
Warranty	3 YEARS

All Channels	130 W/Ch (8 Ohms, 20 Hz–20 kHz, 0.08% THD, 2 Channels Driven, FTC) 250 W/Ch (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven, FTC)
Dynamic Power	300 W (3 Ohms, Front) 250 W (4 Ohms, Front) 150 W (8 Ohms, Front)
THD+N (Total Harmonic Distortion + Noise)	0.08% (20 Hz–20 kHz, Half Power)
Input Sensitivity and Impedance	200 mV/47 k-ohms (Line) 3.5 mV/47 k-ohms (Phono MM)
Rated RCA Output Level and Impedance	1.0 V/320 Ohms (Pre Out) 1.0 V/470 Ohms (Subwoofer Pre Out) 200 mV/2.3 k-ohms (Zone 2/3 Line Out) 2.0 V/2.3 k-ohms (Zone 2/3 Pre Out)
Phono Overload	70 mV (MM, 1 kHz, 0.5%)
Frequency Response	5 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
Tone Control	±10 dB, 90 Hz (Bass) ±10 dB, 7.5 kHz (Treble)
Signal-to-Noise Ratio	106 dB (Line, IHF-A) 80 dB (Phono, IHF-A)
Speaker Impedance	4 ohms–16 ohms

Video	1.0 Vp–p/75 Ohms (Component Y) 0.7 Vp–p/75 Ohms (Component PB/CB, PR/CR) 1.0 Vp–p/75 Ohms (Composite)
Component Video Frequency Response	5 Hz–100 MHz/+0 dB, -3 dB

Dimensions (W x H x D)	21 5/8" x 11 15/16" x 18 11/16" (550 x 303 x 490 mm)
Weight	37.5 lbs (17.0 kg)

(B)	889951000747
